Consolidated CRHSB-24轴承

详细数据

订购指南

库存轴承型号: CRHSB-24

NEEDLE BEARINGS - SEALED CAM FOLLOWERS - HEAVY DUTY STUD - INCH 轴承尺寸 - CYLINDRICAL O.D. - HEX SOCKET - COMPLETE WITH NUT

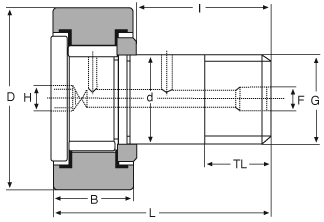

轴承尺寸 (inch)	d	.8750	Cylindrical O.D. CRHSB
	F	.1875
	D	1.5000
	B	.8750
	L	2.4062
	I	1.5000
	TL	.7500
	G	7/8 -14
	H	.3125
重量:磅		.660
进口轴承型号兑换	McGill	CFH-1 1/2 -SB
	RBC	H-48-LW
	Smith	HR-1 1/2 -XB
	Torrington	CRHSB-24

1) Sizes CRHSB(C)-8-1 and CRHSB(C)-10-1 cannot be relubricated. Sizes CRHSB(C)-12 through CRHSB(C)-112 have relubrication holes at thread end. 2) All sealed Cam Followers are prelubricated. 3) All sealed Cam Followers have a black oxide finish on all exposed surfaces.
