Smith CR-1 1/8 -XBCE轴承

详细数据

订购指南

库存轴承型号: CRSBCE-18

NEEDLE BEARINGS - SEALED CAM FOLLOWERS - INCH 轴承尺寸 - CROWNED O.D. - ECCENTRIC STUD - HEX SOCKET - COMPLETE WITH NUT

轴承尺寸 (inch)	F	.1875	Crowned O.D. CRSBE
	D	1.1250
	d1	.6250
	B	.6250
	BD	.6250
	BL	.5000
	L	1.6562
	I	1.0000
	TL	.5000
	G	7/16 -20

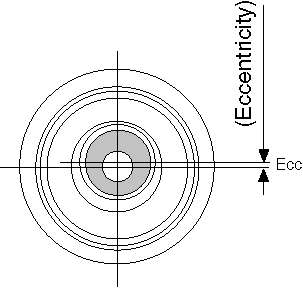

	Ecc	.030
	H	.2500
重量:磅		.210
进口轴承型号兑换	INA	CFE18 PPY
	McGill	CCFE-1 1/8 -SB
	RBC	CS-36-LWX
	Smith	CR-1 1/8 -XBCE
	Torrington	CRSBCE-18

1) Sizes CRSB(C)E-8-1 and CRSB(C)E-10-1 cannot be relubricated. Sizes CRSB(C)E-12 through CRSB(C)E-64 have relubrication hole at thread end only. 2) All sealed Cam Followers are prelubricated. 3) All sealed Cam Followers will have a black oxide finish on all exposed surfaces.
