SKF SAF-509轴承

详细数据

订购指南

库存轴承型号: SAF-509 1 7/16..BALL

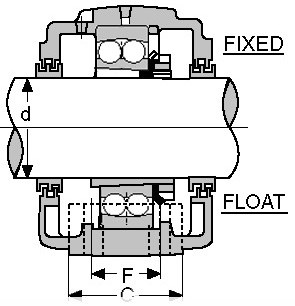

PILLOW BLOCKS - HOUSING ONLY (INCH 轴承尺寸)

轴承尺寸 (inch)	d	1.4375
	F	-
	A	8.2500
	C	2.3750
	E	6.6250
	H	2.2500
	H1	4.3750
Housing Only 重量:磅(1磅 = 454克)		8.500
Triple Seals Req'd / Seal No. (a)		LER-17
Triple Seals Req'd / Seal Qty. (a)		2
Stabilizing Rings Req'd / No.		SR-9-0
Stabilizing Rings Req'd / Qty.		1
Appropriate End Plug		EPR-3
Suitable Adapter		H-309x1 7/16
Suitable for Bearings		1209-K
进口轴承型号兑换	FAG	SAF-509
	Link-Belt	P-LB6824D8-03
	SKF	SAF-509
	Torrington	SAF-509

1) The above are split cast iron housings. For cast steel housings use "SAFS" prefix. Example: SAFS-520. 2) Size SAF-522 and larger are all four-bolt base units. 3) Taconite seals ( TER-..V ) can be used in place of the standard LER seal. Example: TER-17V replaces LER-17
